NANOLEAF (3 Lines) Nano Lines 60 Degrees Expansion Pack

Expand your Nanoleaf Lines setup with the Lines Expansion Pack, featuring 3 Light Lines, 60 Degree Mounting Connectors, and all necessary mounting supplies. Connect up to 18 Light Lines using a single Power Supply, and for larger layouts, consider adding an extra Power Supply from the Nanoleaf Shop. Note that this is an add-on Expansion Pack and requires the Lines Smarter Kit to function.

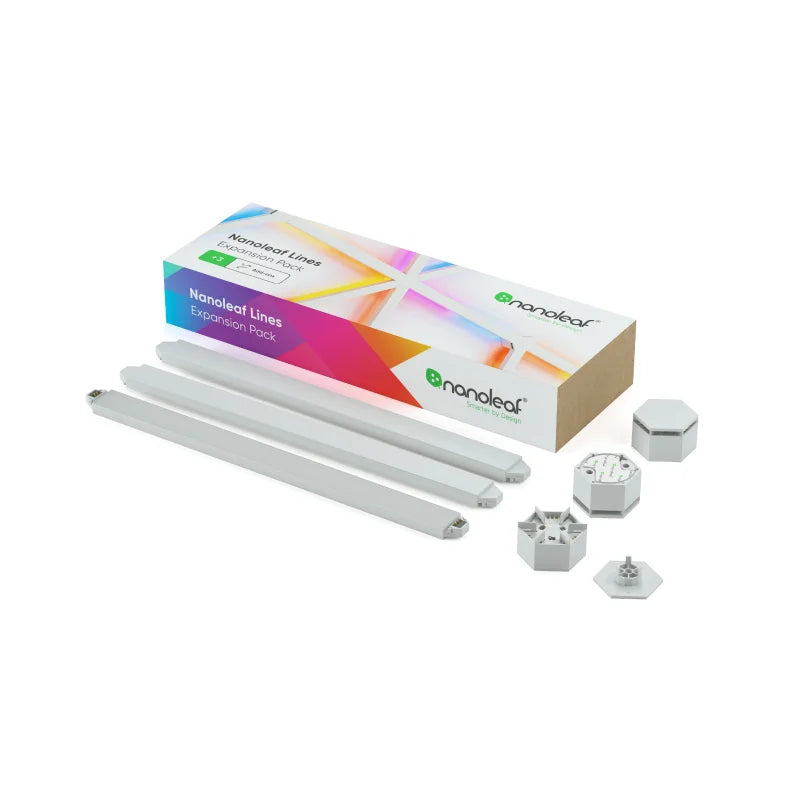

What’s in the Box:

• 3 Light Lines
• 60 Degree Mounting Connectors & Caps
• Mounting Tape

Dimensions:

• Light Lines:
  • Height: 0.31 inches (0.80 cm)
  • Width: 11 inches (27.85 cm)
  • Depth: 0.78 inches (2 cm)
  • Weight: 0.08 pounds (39 g)
• Connectors:
  • Height: 0.85 inches (2.16 cm)
  • Width: 1.57 inches (4 cm)
  • Depth: 1.36 inches (3.46 cm)
  • Weight: 0.03 pounds (15 g)

Features:

• Music Sync: Yes
• Screen Mirror: Yes

General Specifications:

• Luminous Flux per Line: 20 lumens
• Lifetime: 25,000 hours
• Communication Protocol: WiFi (2.4 GHz b/g/n) [5 GHz networks not compatible]
• Dimmability: Yes (via Nanoleaf App, Voice Control, or Controller)
• Mounting Type: Double-sided tape or screw mounts (screws and anchors not included)
• Nanoleaf App Control: Available for Android, iOS, Windows, and Mac
• Thread Compatibility: Yes, functions as a Thread Border Router (requires Firmware 8.5.2+)
• Compatibility: Apple Home, Amazon Alexa, Google Home, IFTTT, SmartThings, Razer Chroma, iCUE
• Usage: Indoor Only
• IP Rating: IP20

Color Specifications:

• Color Temperature: 1200K – 6500K
• Color Channel Configuration: RGBW
• Max Colors: Over 16 million
• Color Zones: 2 color zones per line
• Color Rendering Index (CRI): >80

Power:

• Voltage: 100VAC - 240VAC
• Max Power Supply Power: 42W
• Max Energy Consumption per Line: 2W
• Max Lines per Included 42W PSU: 18 Lines
