NANOLEAF 4D (TVs & Monitors Up to 65″) Screen Mirror + Lightstrip Kit

Nanoleaf 4D Screen Mirror Kit

Elevate your entertainment experience with the Nanoleaf 4D, a screen mirror camera kit that synchronizes the colors on your screen with an addressable gradient LED lightstrip mounted behind it. Enjoy the ultra-immersive “4D” effect as vibrant backlighting brings your favorite shows, movies, and video games to life. For an enhanced experience, use the “Sync+” feature in the Nanoleaf App to extend the screen synchronization effects to over 50 Nanoleaf RGB lights, including Nanoleaf Shapes and Lines.

Key Features:

• Ultra Vivid Screen Mirroring: Synchronize screen colors with dynamic backlighting for an immersive viewing experience.
• Trimmable Lightstrip: Customizable length to fit your screen size.

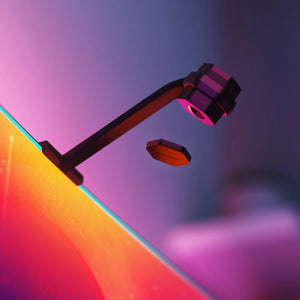

• Privacy Cover for Camera: Ensures your privacy when the camera is not in use.
• Compatible with TV Screens and Monitors: Works with a variety of screen sizes and types.

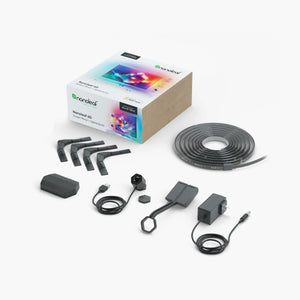

What's in the Box:

• Screen Mirror (for screens up to 65”)
• Camera Mount
• Magnetic Privacy Cover
• Nanoleaf 4D Controller
• Addressable Gradient Lightstrip (up to 5.2 meters for screens up to 85”)
• Power Supply
• Lightstrip Corner Brackets (4x)

Dimensions & Weight:

• Controller: 93.3 mm x 57.1 mm x 17 mm, 66 g
• Lightstrip (up to 65”): 12 mm x 4.8 mm, 50 g (4 meters)
• Lightstrip (up to 85”): 12 mm x 4.8 mm, 50 g (5.2 meters)
• Camera: 31 mm x 28 mm x 34 mm, 60 g
• Mount: 181.2 mm x 56.3 mm x 50 mm
• Corner Brackets: 148.5 mm x 18 mm x 17.9 mm
• Camera Cap: 29.9 mm x 27 mm x 4.6 mm
• Cable Lengths: Camera: 1.5 m | Lightstrip: 1 m | PSU: 2 m

General Specifications:

• Luminous Flux per Meter:
  • Up to 65”: 1075 lumens @ 4 meters
  • Up to 85”: 1122 lumens @ 5.2 meters
• Lifetime: 25,000 hours
• Communication Protocol: WiFi (2.4 GHz b/g/n; 5 GHz networks not compatible)
• Dimmability: Yes (via Nanoleaf App, Voice, Controller)
• Mounting Type:
  • Camera: Tape at the bottom or via TV mount
  • Controller: Tape at the bottom
  • Lightstrip: Tape at the back
• Nanoleaf App Control: Available for Android, iOS, Windows, and Mac
• Compatibility: Apple Home, Amazon Alexa, Google Home, IFTTT, SmartThings, Razer Chroma
• Usage: Indoor
• IP Rating: IP20
• Colour Channel Configuration: RGBIC
• Resolution: 30 LEDs per meter
• Max Colours: More than 16 million
• Colour Zones: 10 zones per meter

Power:

• Input Voltage: 200V-240V
• PSU Output Voltage: 12V 2A
• Max Power Supply Power: 24W
• Max Energy Consumption per Meter of Lightstrip: 7.2W

Warranty: 2 Years
